❶Information

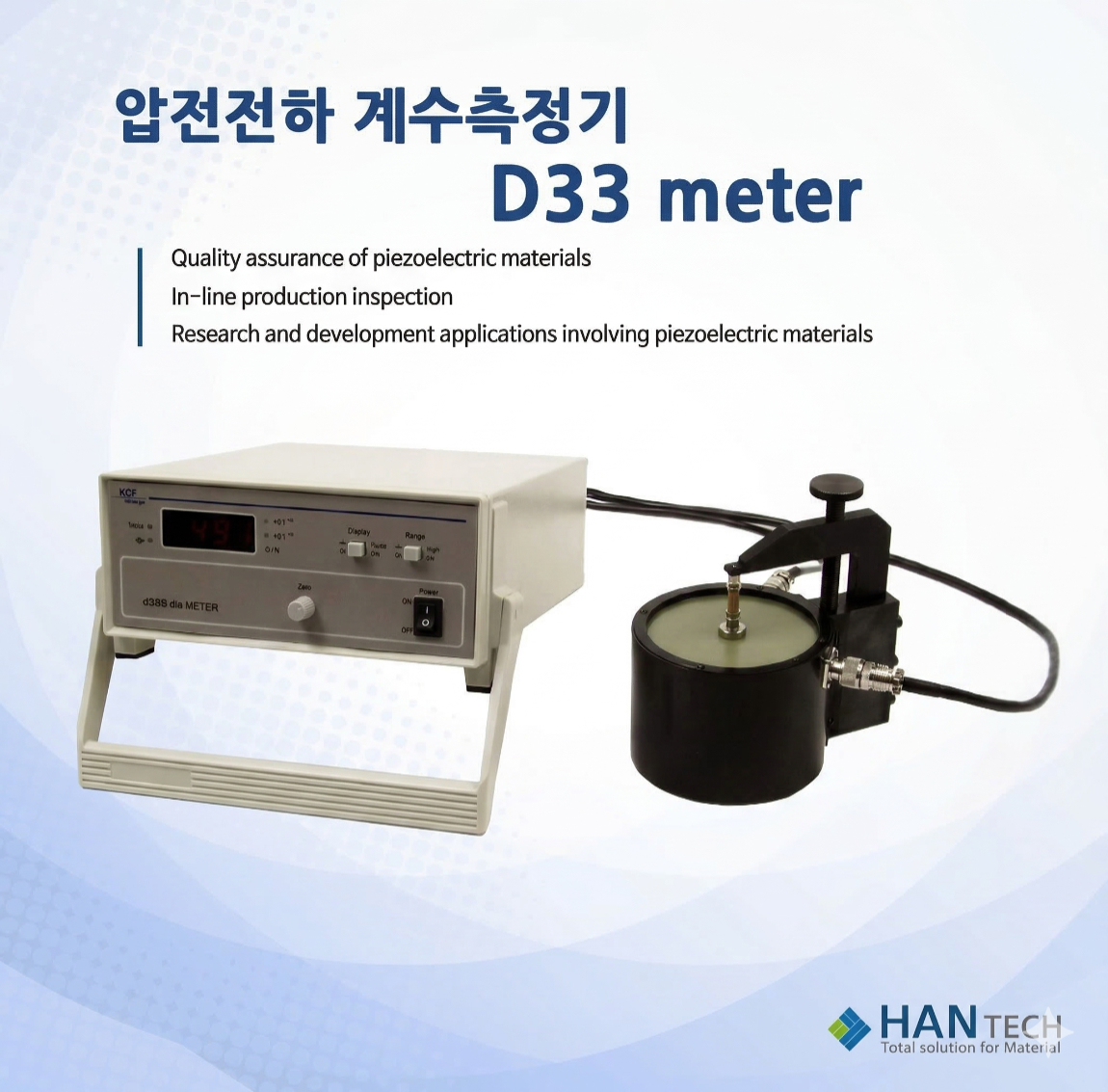

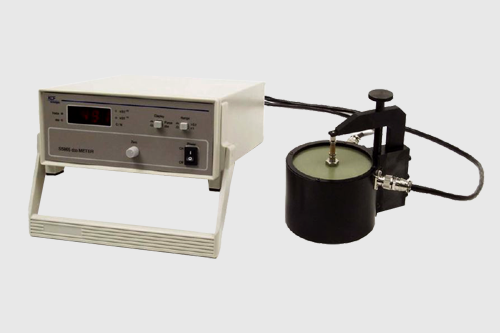

The PM 3500 d33 Meter is a special instrument for directly measuring the piezoelectric constant d33 values of piezoelectric ceramics, polymers, and single drystals over a very large range, at high resolution, and with a high degree of reliability. This meter can also measure the d33 values in various single crystal directions for crystals such as lithium niobate, quartz, and tourmaline.
Applications
- Quality assurance of piezoelectric materials
- In-line production inspection
- Research and development applications involving piezoelectric materials
Features
- 3.5 inch digital display
- Force and d33 mode
- Zero adjust
❷SPEC
- D33Range: X1 range: 10 to 2000 pC/N
X0.1 range: 1 to 200 pC/N
- Accuracy: X1 range: ±2% d33 value : 100 to 2000 pC/N
±5% d33 value : 10 to 100 pC/N
X0.1 range: ±2% d33 value : 10 to 200 pC/N
±5% d33 value : 1 to 10 pC/N
- Resolution: X1 range: 1 pC/N
X0.1 range: 0.1 pC/N
- Porarit: Indicates polarity on upper face of test element
- Indication: in compression.(-sign means negative)

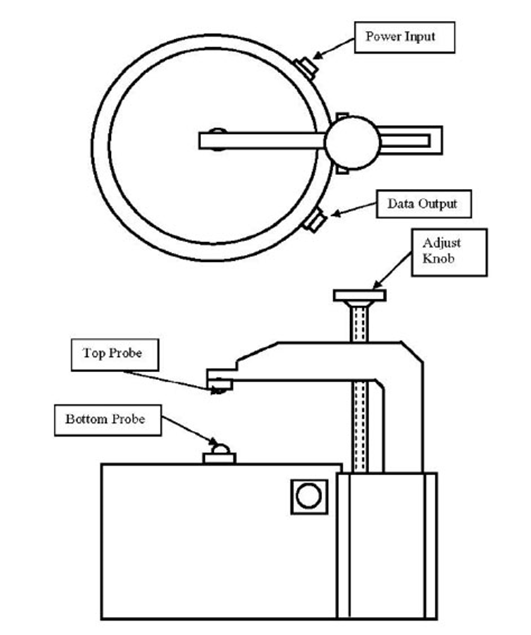

- Force Head Dimensions: 110×140mm
- Chassis Dimensions: 280×200×90mm
- Force Head Weight: 3kg
- Chassis Weight: 2kg
- Power: 110/220V, 50/60 Hz, 20W
- Shunt Capacitance: X1 range: 1 pF
X0.1 range: 0.1 pF
- Force: 0.25 N at Frequency: 110HZ
